slewing bearing

Single row four point contact ball slewing bearing 01 series is a standard model series in China. It is made of two seat rings. The balls and the raceway are with four points contact, via which the axial force, radial force and resultant moment is born simultaneously. Outer Diameter is from 280mm to 4726mm. Most models slewing ring are with ready stock or semi-finished material stock, which can deliver out within 15 days. Standard material we adopt is 50Mn and 42CrMo. Other customized material is also acceptable. We support models selection based on your application; teeth quenching and grinding; customized surface treatment like Blackening, phosphating, galvanizing, sandblasting and etc. In the production process of slewing ring bearing, whole process inspection is implemented strictly to ensure that each set of products are qualified. For high-precision products, precise grinding is used to effectively control the parameters of ring ellipse, wall thickness and flatness, so as to ensure that the precision of finished products meets the requirements of standards or customer drawings. This series models are with advantage of compact design, flexible rotating and light weight. It is widely used on rotary conveyor, welding arm and positioner, light/medium duty cranes, excavators and other engineering machines. Please feel free to tell us the application you use and we can help you choose the proper model and offer you a professional solution as soon as possible.

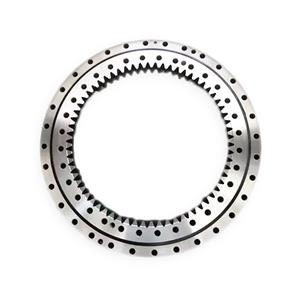

The single-row cross-roller slewing bearing consists of two rings, with compact structure, high manufacturing accuracy, small assembly clearance, and high requirements for installation accuracy. It can bear overturning moment and large radial force and it is widely used in transportation, construction machinery and military products. There are two basic working modes: 1. The inner ring fixes , and the outer ring rotates; 2. The outer ring fixes and the inner ring rotates. The raceways of the slewing bearing are all treated by surface induction hardening, and the quenching hardness is guaranteed to be HRC55~62, which can achieve sufficient hardened layer depth. Slewing bearing is usually made with internal teeth, external teeth or no teeth. The heat treatment of gears is generally normalized or quenched and tempered. The tooth surface can also be quenched according to the user's requirements, the quenching hardness is HRC50-60, and sufficient depth can be guaranteed. Teeth grinding is also supported.

There are two basic working modes: 1. The inner ring fixes , and the outer ring rotates; 2. The outer ring fixes and the inner ring rotates. The raceways of the slewing bearing are all treated by surface induction hardening, and the quenching hardness is guaranteed to be HRC55~62, which can achieve sufficient hardened layer depth. Slewing bearing is usually made with internal teeth, external teeth or no teeth. The heat treatment of gears is generally normalized or quenched and tempered. The tooth surface can also be quenched according to the user's requirements, the quenching hardness is HRC50-60, and sufficient depth can be guaranteed. Teeth grinding is also supported.

Flange slewing bearings are light in weight, thin in thickness, and flexible in movement. It is widely used in food machinery, filling machinery, environmental protection machinery, etc. The flange slewing ring bearing mainly includes outer and inner rings, grease fittings, sealing strips, gaskets, load plugs and taper pins, and its characteristics are: both the inner and outer rings are L-shaped; the sides of the rings are provided with grease cups, and the outer Steel balls are assembled between the ring and the inner ring. Each ball is separated by a spacer, and the steel ball and the spacer are installed through a load plug and a tapered pin to protect the running of the ball.

The single-row cross-roller slewing bearing consists of two rings, with compact structure, high manufacturing accuracy, small assembly clearance, and high requirements for installation accuracy. It can bear overturning moment and large radial force and it is widely used in transportation, construction machinery and military products. There are two basic working modes: 1. The inner ring fixes , and the outer ring rotates; 2. The outer ring fixes and the inner ring rotates. The raceways of the slewing bearing are all treated by surface induction hardening, and the quenching hardness is guaranteed to be HRC55~62, which can achieve sufficient hardened layer depth. Slewing bearing is usually made with internal teeth, external teeth or no teeth. The heat treatment of gears is generally normalized or quenched and tempered. The tooth surface can also be quenched according to the user's requirements, the quenching hardness is HRC50-60, and sufficient depth can be guaranteed. Teeth grinding is also supported.

The double row ball slewing bearing has three seat rings. The steel balls and isolators can be directly arranged into the upper and lower raceways. According to the stress conditions, the upper and lower rows of steel balls with different diameters are arranged. This kind of open assembly is very convenient. The bearing angle of the upper and lower arc raceway is 75 degrees. It can bear a great deal of axial force and overturning moment. When the radial force is greater than 0.1 times the axial force, the raceway must be specially designed. The axial and radial dimensions of the double row ball slewing bearing are relatively large and the structure is fastened. It is especially suitable for handling tower cranes, truck cranes and other loading machines that require medium or above diameters, military products. The double-row four-point contact ball slewing bearing structure is similar to the single-row ball slewing bearing, the difference is that it uses two rows of steel balls as rolling elements, the two rows of steel balls have the same size, and a single isolation block is set between the steel balls. The inner and outer rings are integral, and the steel balls are loaded by plugging the holes. It requires a product for a heavy-duty, radially constrained host. Double row different diameter ball slewing bearing structure is characterized by the upper and lower double-row steel balls, inner and outer rings, isolation blocks and lubrication and sealing devices. However, the double-row different diameter slewing bearing is a three-piece slewing bearing, and its structure is more complicated.

Flange slewing bearings are light in weight, thin in thickness, and flexible in movement. It is widely used in food machinery, filling machinery, environmental protection machinery, etc. The flange slewing ring bearing mainly includes outer and inner rings, grease fittings, sealing strips, gaskets, load plugs and taper pins, and its characteristics are: both the inner and outer rings are L-shaped; the sides of the rings are provided with grease cups, and the outer Steel balls are assembled between the ring and the inner ring. Each ball is separated by a spacer, and the steel ball and the spacer are installed through a load plug and a tapered pin to protect the running of the ball.

1. The work is simple and sensitive, and the rotation resistance is small. 2. The structure is compact and the dimensions (mainly height) are small. 3. Convenient maintenance and long service life. 4. It is composed of ring gear, seal and screws, etc. It is easy to install and convenient for specialized centralized production. 5. There is no intermediate pivot, and other components can be installed in the middle space.

The single-row cross-roller slewing bearing consists of two rings, with compact structure, high manufacturing accuracy, small assembly clearance, and high requirements for installation accuracy. It can bear overturning moment and large radial force and it is widely used in transportation, construction machinery and military products. There are two basic working modes: 1. The inner ring fixes , and the outer ring rotates; 2. The outer ring fixes and the inner ring rotates. The raceways of the slewing bearing are all treated by surface induction hardening, and the quenching hardness is guaranteed to be HRC55~62, which can achieve sufficient hardened layer depth. Slewing bearing is usually made with internal teeth, external teeth or no teeth. The heat treatment of gears is generally normalized or quenched and tempered. The tooth surface can also be quenched according to the user's requirements, the quenching hardness is HRC50-60, and sufficient depth can be guaranteed. Teeth grinding is also supported.
