Slewing Bearings in Excavators: Common Failure Modes & How to Prevent
Introduction

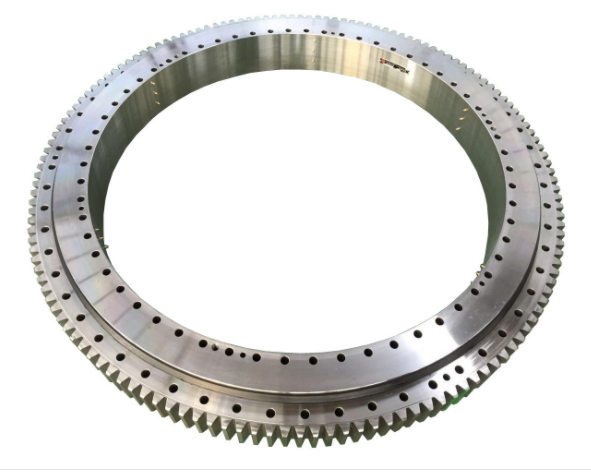

Slewing bearings (slew rings) connect the excavator's upper structure to the undercarriage, enabling 360° rotation while handling axial, radial, and tilting loads. Failure of this single component means total machine downtime. Over 96% of premature failures are preventable with proper maintenance and operation.
5 Common Failure Modes
1. Fatigue Spalling
Cyclic stress exceeds material limits → subsurface cracks → metal flakes detach from raceways/rollers.
Causes: Impact loads, poor heat treatment, insufficient lubrication.
Signs: Rough/flaky raceways, increased noise & rotation resistance.
2. Brinelling & False Brinelling
Permanent indentations (brinelling) from impact; or wear depressions from vibration without rotation (false brinelling).
Causes: Dropped attachments, transport without swing lock, trailer vibration.
Signs: Spaced indentations, reddish oxide dust, increased backlash.
3. Abrasive Wear
Contaminants (sand, dust, metal) enter bearing and grind down surfaces like lapping compound.
Causes: Worn seals, high-pressure washing, contaminated grease, infrequent relube.
Signs: Scored/matte raceways, enlarged play, discolored grease leakage.
4. Corrosion & Fretting
Rust from moisture (chemical) or oxide debris from micro-motion (fretting).
Causes: Humid storage, condensation, poor grease film, stray currents.
Signs: Rust stains, dark oxide paste, pitting.
5. Bolt Failure
Mounting bolts loosen, stretch, or fracture under extreme loads.
Causes: Incorrect torque, no retorque, uneven mounting surface, substandard bolts.
Signs: Sheared heads, gaps between rings, knocking during swing.
4 Warning Signs – Never Ignore
Sign | Indication | Action |
Excessive play/wobble | Raceway wear | Measure play; inspect |
Grinding/popping noises | Poor lube or wear | Grease & purge; check debris |
Binding / high torque | Uneven load distribution | Inspect raceways |
Dimpled raceways | Overloading | Review load charts; change approach angle |
Prevention Strategies
Lubrication
Grease every 100 hours (or daily in severe conditions) with NLGI No. 2 EP grease.
Purge until old grease exits seals—this flushes contaminants.
For idle machines: grease at least every 6 months.
Gear Lubrication
Grease gear mesh every 8 hours for slow/intermittent rotation.
Clean gear tray regularly; oil indicates swing drive seal failure.
Bolt Torque
Retorque after first 50–100 hours, then periodically.
Use calibrated wrench; follow spec; use quenched washers.
Seals
Inspect regularly for cracks/hardening; replace damaged seals immediately.
Avoid high-pressure water at seal gaps during washing.
Installation & Selection
Choose right bearing type (single/double-row, cross-roller, 3-row).
Allowable torque ≥ 2× calculated torque.
Mounting surface flatness ≤ 0.1 mm.
Axial assembly clearance: 0.3–0.5 mm.
Soft band on raceway in non-load area (parallel to tracks for excavators).
Adjust gear backlash properly.
Operation
Do NOT use swing to break or ram.
Reduce swing speed with heavy loads.
Lock swing brake during transport.
Honor load charts – even slight overloads cause irreversible dimples.
Change approach angle to avoid repetitive heavy loads in the same position.
When to Replace
Replace when:
Excessive play/wobble persists,Grinding noises after greasing,Jerky rotation,Metal shavings in grease,Uneven gear wear
Cost-saving tip: Remanufacturing costs <50% of new replacement if caught early.
Conclusion
Slewing bearing failure is costly—but 96% of premature failures are preventable. Focus on: lubrication, bolt torque, seals, proper installation, and smart operation. A small maintenance investment delivers huge returns in uptime and service life.
